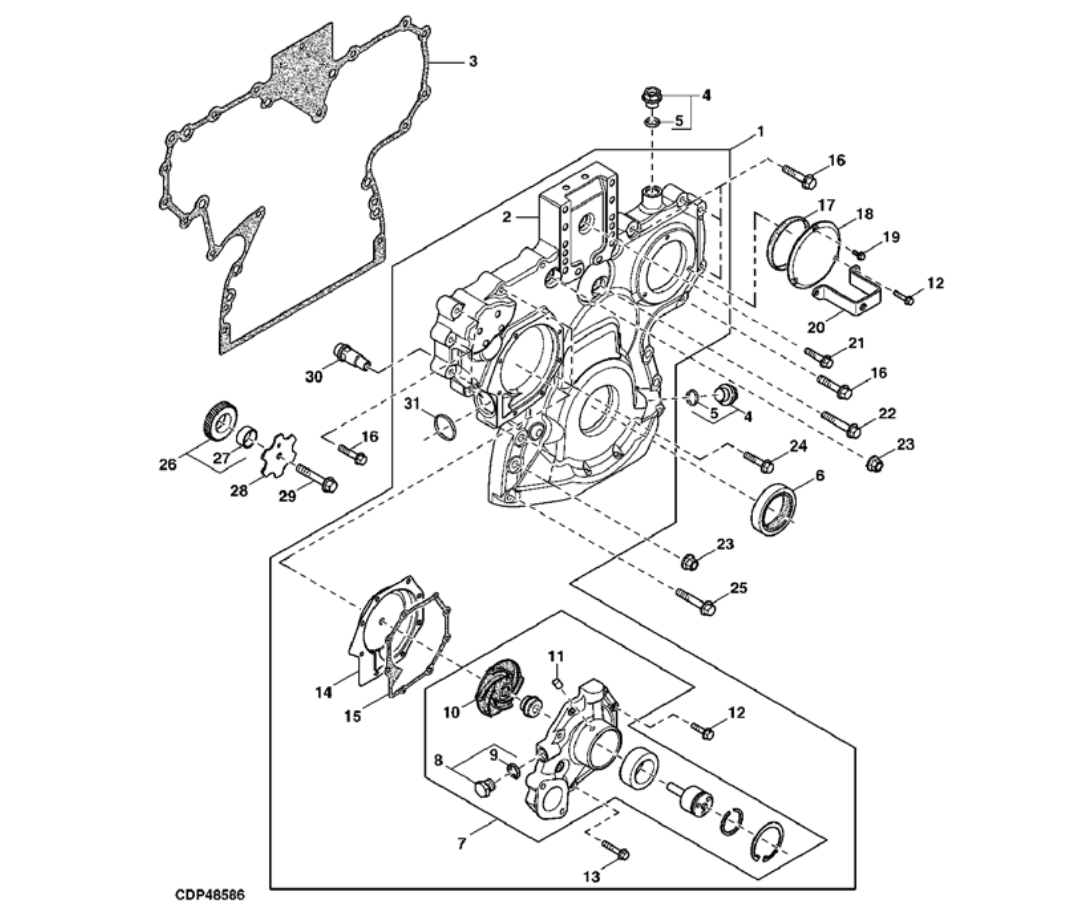

Item Part Number Description Quantity Variation 4412 1 GM84804 Kit, Cover 1 2 -- 1 3 GM60527 Gasket 1 4 360078 Plug 2 5 360180 O--Ring 1 6 360181 Seal 1 7 GM17513 Water Pump 1 8 360014 Plug 1 9 360176 O--Ring 1 10 GM32944 Kit, Water Pump 1 11 GM17443 Filter 2 12 # Screw, M6 X 25 7 13 # Screw, M6 X 30 3 14 360029 Kit, stainless steel insert 1 15 360124 Gasket, Water Pump 1 16 # Screw, M8 X 40 8 17 360107 O--Ring 1 18 360105 Cover 1 19 # Screw, M6 X 16 1 20 GM17552 Bracket 1 21 # Screw, M8 X 35 1 22 360512 Screw, M8 X 45 1 23 # Flange Nut, M10 6 24 # Screw, M8 X 60 2 25 # Screw, M8 X 55 4 26 360021 Gear 2 27 360082 Bushing 1 28 360148 Thurst Washer 1 29 Screw, M10 X 50 1 30 GM32810 Valve 1 31 GM24543 O--Ring 1 AR As Required # Common hardware; procure locally

項目零件編號描述數量變化44121個GM84804套件，蓋1 2-1 3 GM60527墊圈1 4360078插頭2個5360180 O--環1 6 360181密封件1 7 GM17513水泵1 8 360014插頭19360176環1 10 GM32944套件，水泵1 11 GM17443過濾器2個12螺絲釘M6X25713號螺絲M6X30360029套件，不銹鋼插入件1 15 360124水泵密封墊116號螺絲，M8X40817360107 O--第一環18 360105蓋1 19號螺絲：M6 X 16 1 20 GM17552支架1 21號螺絲，M8 X 35 122 360512螺絲，M8×45 1個23號法蘭螺母，M10 6個24號螺絲，M8 X60 2 25#螺絲，M8 X55 4 26 360021齒輪2 27 360082襯套1 28360148瑟斯特·沃什1個29螺絲，M10 X50 1個30 GM32810閥門1個31 GM24543 O型環1 AR視需要#通用硬件；本地采購
