項目部分描述數量變化編號44431個GM88691墊圈1個2個GM52534支持1個3號洗衣機,10.500×18X 1.600 MM4#帽螺絲,M10 X 45 4 5 GM 88726蓋1 6 GM 88721蓋1 7 GM24543 O-環(huán)1 8 360029 Kit,不銹鋼插入式1 9 360124墊圈,水泵1 10 GM 88727水泵(順序插入和墊圈)1 11 360003止動環(huán)1 12 GM 49931環(huán)1 13 360014插頭1 14 360176 O環(huán)1 15#螺桿,M6 X 40 3 16 16螺絲釘M6X30517號螺絲M8 X 60 3 18#螺絲,M8 X 40 1 19 360181密封件1 20 360078塞子,排水口1 21 360180 O型圈,17.3 X 2.2毫米1 22 GM17498接頭1 23 GM17437 O型圈1 24GM30375法蘭螺母,M10 9 25號螺絲,M8 X 50 8Item
Part
Description
Quantity
Variation

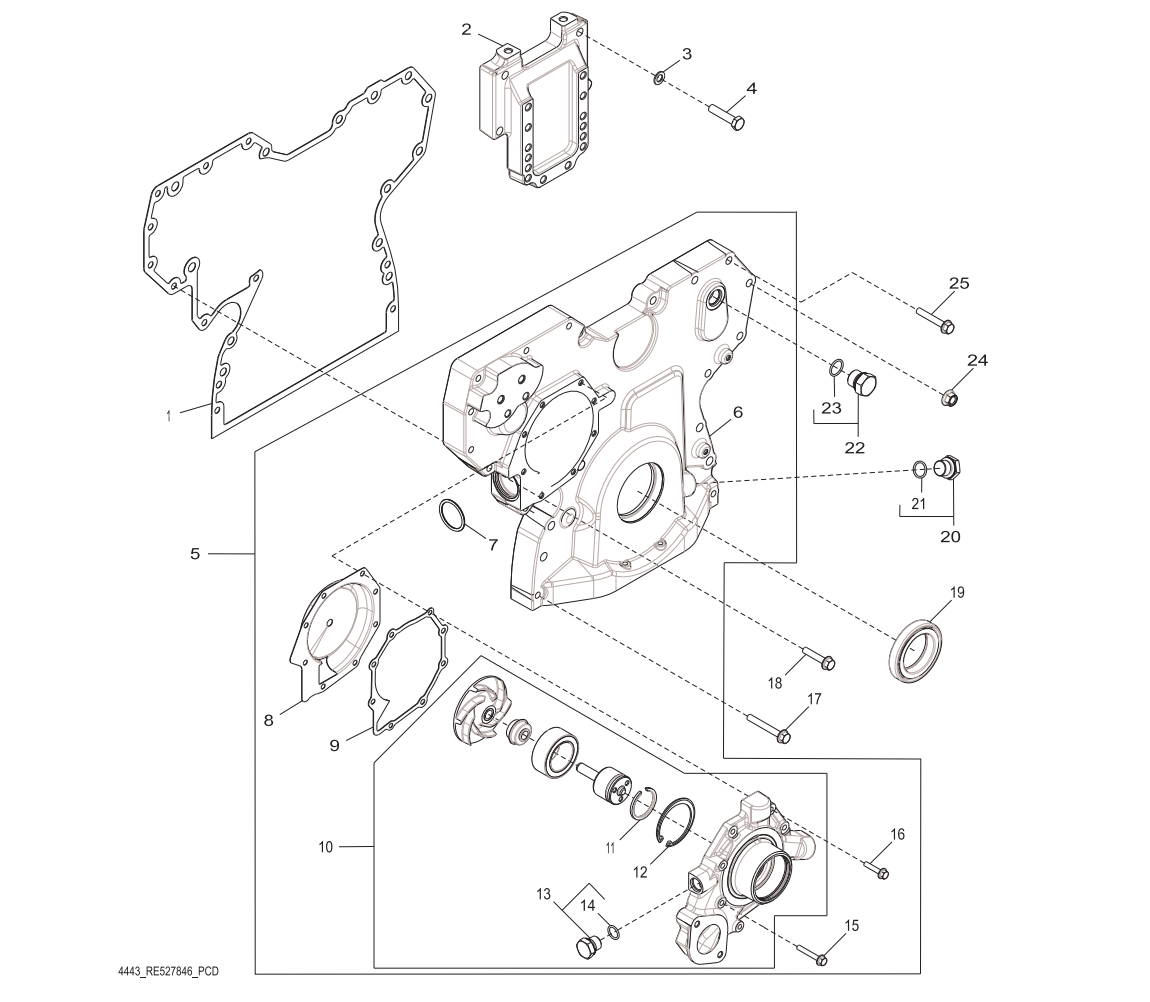

Number 4443
1 GM88691 Gasket 1
2 GM52534 Support 1
3 # Washer, 10.500 X 18 X 1.600 Mm 4
4 # Cap Screw, M10 X 45 4
5 GM88726 Cover 1
6 GM88721 Cover 1
7 GM24543 O-Ring 1
8 360029 Kit, Stainless Steel Insert 1
9 360124 Gasket, Water Pump 1
10 GM88727 Water Pump (order insert and gasket also) 1
11 360003 Snap Ring 1
12 GM49931 Ring 1
13 360014 Plug 1
14 360176 O-Ring 1
15 # Screw, M6 X 40 3
16 # Screw, M6 X 30 5
17 # Screw, M8 X 60 3
18 # Screw, M8 X 40 1
19 360181 Seal 1
20 360078 Plug, Drain 1
21 360180 O-Ring, 17.3 X 2.2 Mm 1
22 GM17498 Fitting 1
23 GM17437 O-Ring 1
24 GM30375 Flange Nut, M10 9
25 # Screw, M8 X 50 8
