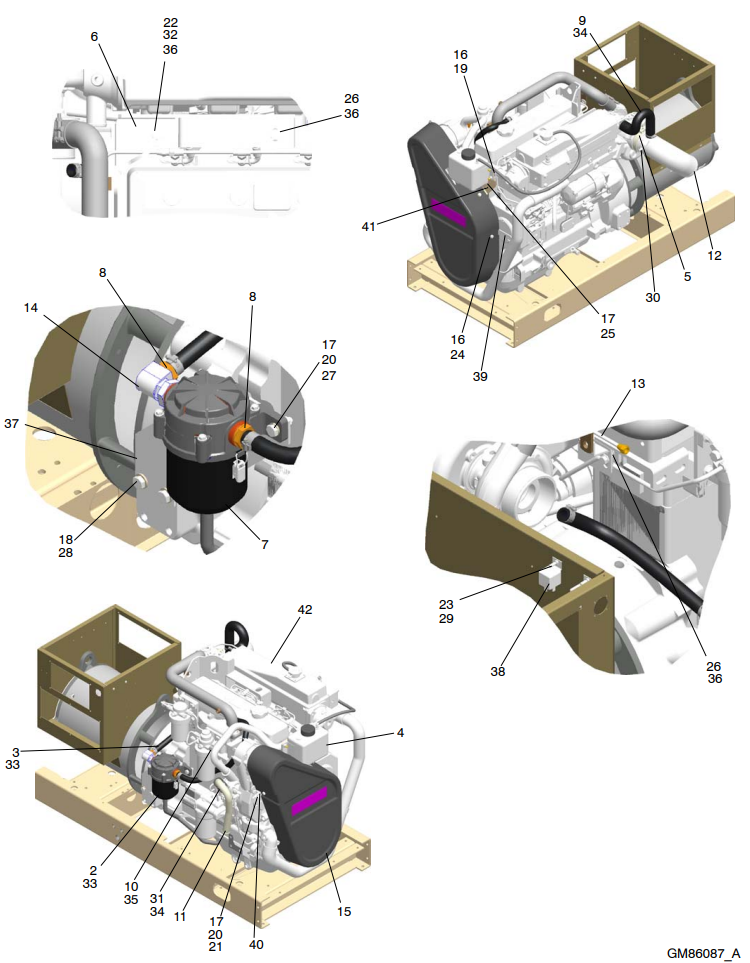

Engine, continued 發(fā)動機,“GM93289,”“GM93285,”“GM91650,”“GM85414,&amp

Engine, continuedVariation 5, 6, 19, 20ItemPartNumber Description Quantity2 X-373-15 Hose, 3/4 In. I.D. 13 X-373-25 Hose, 3/4 In. I.D. 14 256971 Bottle, Overflow 15 324245 Clamp, Exhaust (4.25 In.) 16

Engine, continued Variation 5, 6, 19, 20 Item Part Number Description Quantity 2 X-373-15 Hose, 3/4 In. I.D. 1 3 X-373-25 Hose, 3/4 In. I.D. 1 4 256971 Bottle, Overflow 1 5 324245 Clamp, Exhaust (4.25 In.) 1 6 GM14216 Eye, Lifting 1 7 GM16234 Assembly, Emissions Filter 1 7.1 GM32404 Element, Air Emissions Filter 1 8 GM16246 Connector, Hose 1 9 GM25435 Hose, Seawater (1.25” ID) 1 10 GM42525 Adapter Bushing 1 11 GM47453 Tube, Water Inlet 1 12 GM47704 Elbow, Wet Exhaust 1 13 GM48028 Line, Fuel 1 14 GM64277 Fitting, 90 deg. Elbow 1 15 GM86086 Guard, Belt 1 16 M125A-08-80 Washer, Plain, 8.4 ID X 16.0 OD 7 17 M125A-10-80 Washer, Plain, 10.5 ID X 20.0 OD 5 18 M125A-12-80 Washer, Plain 2 19 M6923-08-80 Nut, Hex 8mm 4 20 M6923-10-80 Nut, Hex 10mm 3 21 M931-10040-60 Screw, Hex Cap 1 22 M931-10065-82 Screw, Hex Cap (Metric) 1 23 M933-05020-60 Screw, Hex Cap 2 24 M933-08025-60 Screw, Hex Cap 3 25 M933-10025-60 Screw, Hex Cap,Fully Thrd M10 X 25mm 2 26 M933-10025-82 Screw, Hex Cap 2 27 M933-10035-60 Screw, Hex Cap 2 28 M933-12030-60 Screw, Hex Cap 2 29 M934-05-50 Nut, Hex 5mm 2 30 X-75-4 Plug, Pipe ( 1/8” Nptf) 1 31 X-272-2 Hose, Radiator, Straight, 1.25 In. ID 1 32 X-400-209 Spacer, .406 ID X 1 OD X 1.48 In. 1 33 X-426-12 Clamp, Hose, .69/1.25 In. 4 34 X-426-19 Clamp, Hose, 1.00/2.00 In. 4 35 X-447-23 Elbow, Male Tube (90 Deg) + Vibra Seal 1 36 X-801-3 Washer,Hardened,.406 ID X .812 In. OD 3 37 See chart Bracket, Filter Mounting 1 38 See chart Relay, 12 VDC 2 39 See chart Bracket, Belt Guard 1 40 See chart Bracket, Belt Guard 1 41 See chart Bracket, Water Bottle 1 42 See chart Engine Assembly 1 Use this table to identify part numbers of items 37--42. Variation Module Part Number Item 37, Bracket Item 38, Relay Item 39, Bracket Item 40, Bracket Item 41, Bracket Item 42, Engine 5 GM86087--GR1--WHT GM16285-WHT GM49746 GM49941-WHT GM49942-WHT GM85815-WHT GM86375 6 GM86087--GR2--WHT GM16285-WHT GM49747 GM49941-WHT GM49942-WHT GM85815-WHT GM86376 19 GM86087--GR1--G49 GM16285-G49 GM49746 GM49941-G49 GM49942-G49 GM85815-G49 GM86375 20 GM86087--GR2--G49 GM16285-G49 GM49747 GM49941-G49 GM49942-G49 GM85815-G49 GM86376
