Alternator and Mounting, continued 交流發(fā)電機(jī)和安裝,“GM91650,”“40MDDCA,”“55MDDCB ,&am

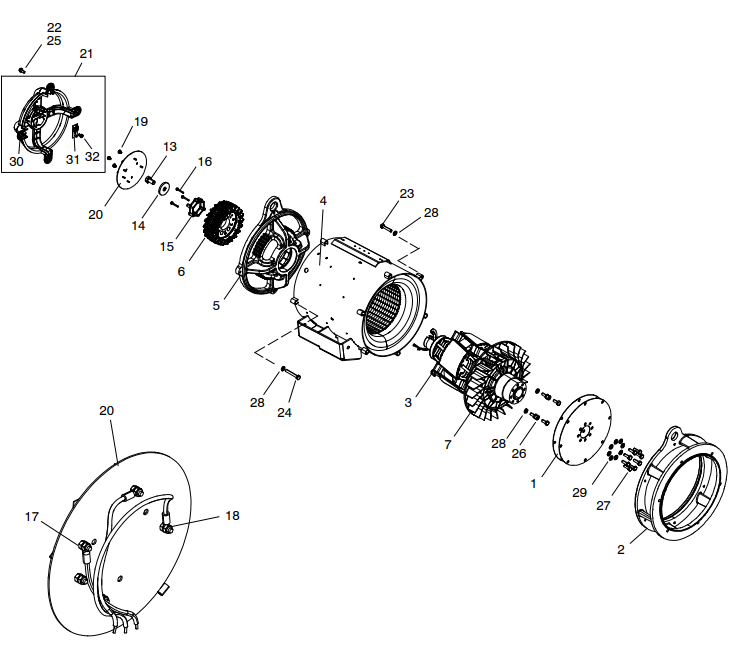

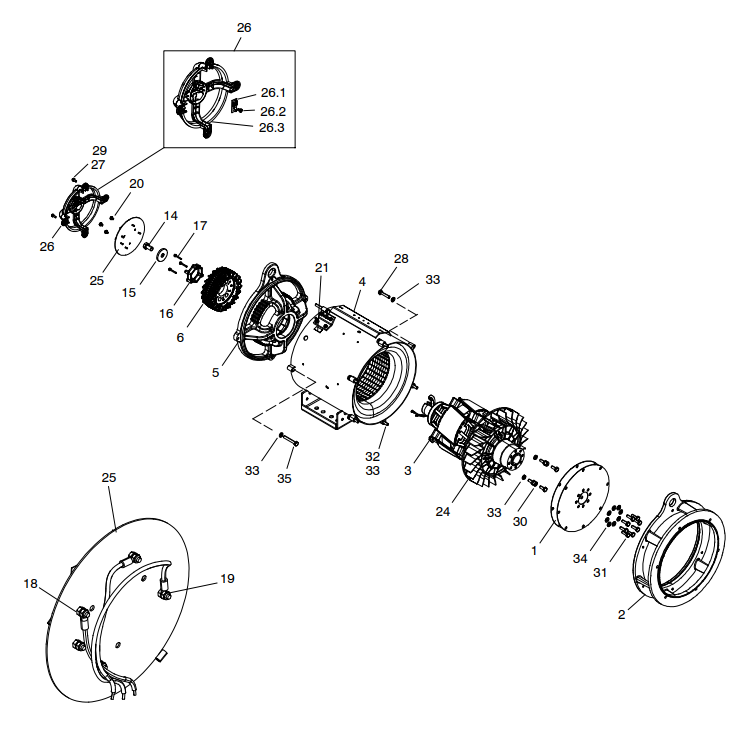

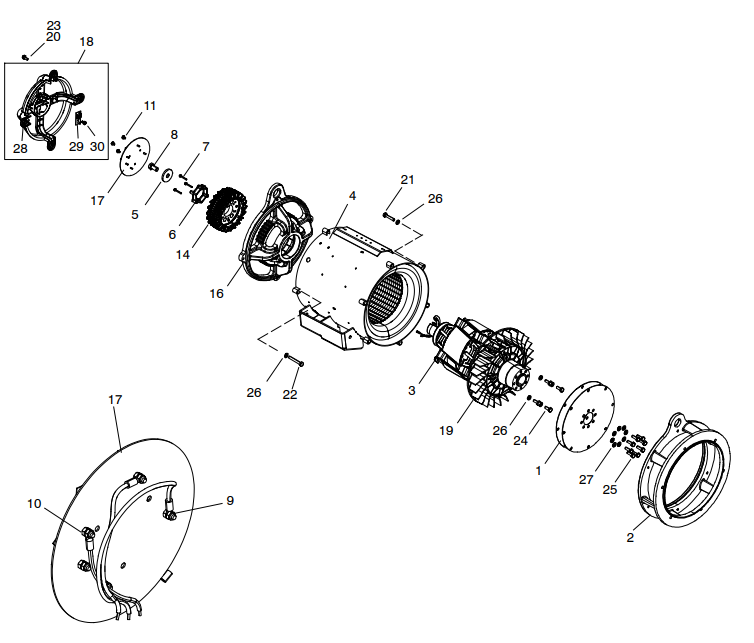

Alternator and Mounting, continued4PX AlternatorsItemPartNumber Description Qty.1 See chart Disc, Drive 22 See chart Adapter, Generator 13 See chart Rotor Assembly 14 See chart Stator Assembly 15 See

Alternator and Mounting, continued 4PX Alternators Item Part Number Description Qty. 1 See chart Disc, Drive 2 2 See chart Adapter, Generator 1 3 See chart Rotor Assembly 1 4 See chart Stator Assembly 1 5 See chart Bracket Assembly, End 1 6 See chart Exciter Armature, SCR 1 7 See chart Fan, Alternator 1 13 M933-16030-82 Screw, hex cap 1 14 GM70070 Washer, FRX Exciter Mtg 1 15 GM70076 Spacer, FRX Activator 1 16 M7500D-05035-85 Screw, Metric Thread Forming 3 17 M934-04-SS Nut, Hex (Stainless Steel) 5 18 M985-04-SS Nut, Hex Elastic Stop 5 19 X-6071-8 Screw, Thread Forming 3 20 GM72391 PCB ASSY, World Alternator Activator 1 21 GM74218 Holder Assy, LED Optic Board (includes items 30--32) 1 22 M125A-06-80 Washer, Plain 4 23 M931-10050-60 Screw, hex cap 6 24 M933-10065-60 Screw, Hex Cap 4 25 M933-06016-60 Screw, hex cap, M6x16mm, js500 full thrd 4 26 M933-10025-60 Screw, hex cap,fully thrd M10 x 25mm EXP 4 27 M933-10030-82 Screw, hex cap 8 28 X-25-93 Washer,plain .406ID x .75in. OD 14 29 X-801-3 Washer,hardened,.406 ID x .812 in.OD 8 30 GM74110 Holder, LED Optic Board 1 31 GM74198 PCB ASSY, Alt. LED Optic Board 1 32 M7500C-05010-83 Screw, Thread Forming Metric 1 Use this table to identify part numbers of items 1--7. Alternator No. Part Number Item 1, Drive Disc Item 2, Adapter Item 3, Rotor Assy. Item 4, Stator Assy. Item 5, End Bracket Item 6, Exciter Armature Item 7, Fan GC79429-43 257016 GM87533 GC81408-11 GC85348-1 GM81402-2 GC70064-2 GM87190 GC79429-44 257016 GM87533 GC81408-10 GC85342-1 GM81402-2 GC70064-2 GM87190 GC79429-45 257016 GM87533 GC81408-7 GC85342-2 GM81402-2 GC70064-2 GM87190 GM87763 257016 GM87533 GC81408-11 GC85348-1 GM81402-2 GC70064-2 GM87190 GM87764 257016 GM87533 GC81408-10 GC85342-1 GM81402-2 GC70064-2 GM87190 GM87765 257016 GM87533 GC81408-7 GC85342-2 GM81402-2 GC70064-2 GM87190
